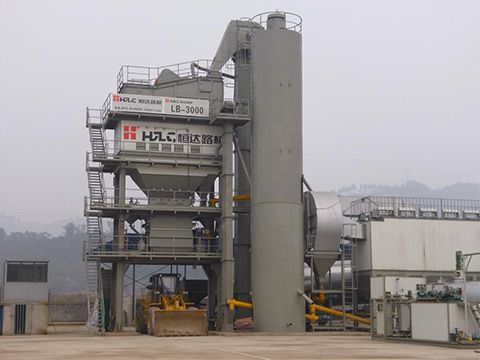

LB-3000 ASPHALT MIX PLANT
Source:未知  Author:admin  Release time:2018-12-07 14:47  Clicks:




Product name : LB-3000 ASPHALT MIX PLANT
Item : LB-3000
Details :




The main model machine Hengda produced, the advantages are: large capacity, high efficiency, low consumption, impact structure, etc. It adopts mutual/auto intelligent control system and secondary aggregates/bitumen tracking and measuring system. Main components were adopting imported brands, and keep extra entrance for heat recycling and other add-ins, to fulfill the customers’ different production requirements during all kinds of road projects.



Asphalt plant three major parts(vibrating screen, mix bin, dry drum) are patent products。 Productivity of the whole machine is improved, quality be strengthened and be more safety and convenience.

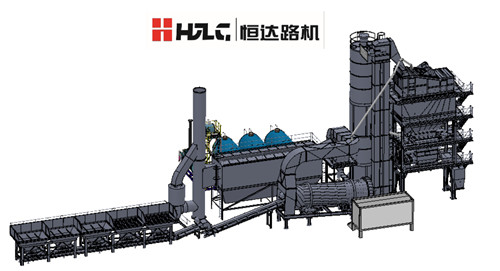

The overall layout is compact with novelty structure, less ground occupying, easy for erection and site shifting.



Whole equipment adopts modular design, convenient for shipping and installation for all composed parts.



Equipment adopt electro precision measuring(bitumen tracking measuring, aggregates secondary measuring), assure the accuracy of measuring.



Electronic elements adopt imported German brand, control system is Manual/Auto microcomputer control.



The gearbox, bearing, burner, pneumatic elements, dedust bag adopt imported brand, to assure the stability of equipment running.







Model & Spec

LB-3000

Capacity

180-240t/h

Intermittent mix

3000kg/lot

Measuring mode

Bitumen tracking measuring, aggregates secondary measuring

Cold system

Frequency control

Measuring precsion



Aggre.≦0.5%、bitumen/powder≦0.25%

Mix bin

Forced type, dragon spiral type blade arm arrangement

Drying drum

Fφ2750×9000

Vibrating screen

Maintenance free, exciting motor vibrating

Burning device

Low pressure atomizing type

Burning type

Coal, diesel, heavy oil, gas

Hot material lifter

Plate link chain gravity drops(compact hoppers)

Dedust mode

First volute, secondary bag(Air anti blow/impulse)
